SimplifyQA Object Manager 作者： Simplify3x Software

Object Manager is a robust tool used to capture the web elements in order to get a list of its properties needed for automation testing.
Object Manager is designed to create optimized CSS selectors, XPath, and identify other web properties that are usable across the test cases.

The xpaths are short (except absolute xpaths) and optimized. They are structured in a way that by using the class information and ID along with other object attributes (name, title, etc), the object inspector can withstand certain levels of changes with respect to the page layout.

Overview of Simplify Object Manager
Simplify Object Manager, a product by Simplify3X Software Pvt. Ltd, is designed to help create robust and optimized CSS selectors, XPath and identify other web properties that are usable across the test cases. The xpaths are short (except absolute xpaths) and optimized. They are structured in a way that by using the class information and ID along with other object attributes (name, title, etc), the object inspector can withstand certain levels of changes with respect to the page layout.
You can start using the Simplify Object Manager by registering yourself as a new user directly from the plug-in. Below are the various functionalities that you can carry out using the object manager.
Creating a New Project using the “Create Project” option
Assigning a registered user to an existing project using the “Assign User” option
Add an unregistered user to an existing project using the “Invite User” option. A registration link would be mailed to the user.
Types of Views:

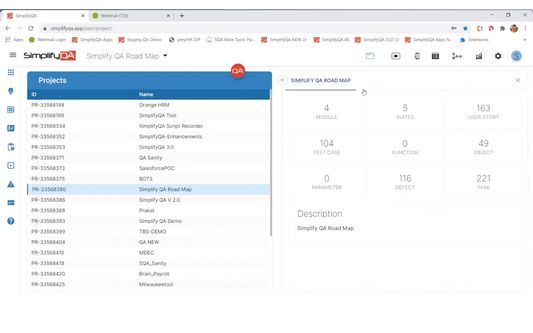

Navigational Dashboards
List of Operations
Navigate to Module
Navigate to Objects
View list of users associated to a project
As a Creator: Delete project & Remove a user
As a Contributor: Leave project

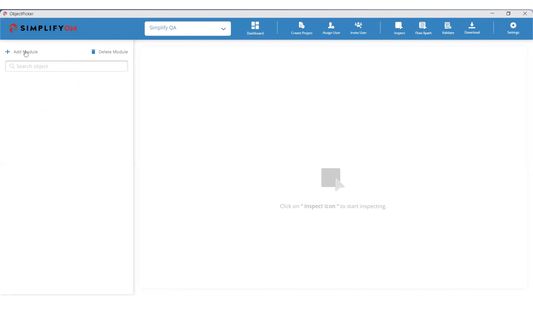

Object List View: Hierarchical view of objects (Project → Module → Pages)
List of Operations
Add Module: Grouping of related objects.
Delete Module / Page / Objects


How to capture web elements using Simplify Object Manager?
Install Simplify Object Manager IDE from Chrome web store
Register if a New User
Enter the following details:
Company email ID
Company name
Phone number
A suitable password
Click on the Register button
Login to the IDE
Cloud User
Pre-configured public server where the objects are pushed
On-prem User
Enter server URL
Select the relevant project from the project selection dropdown.
Click on the Inspect button on the top right corner (you can inspect on all open pages in the browser)
Click on the elements to capture their properties. You will see a blue border on the elements as you move the cursor on the page. This helps in locating the element precisely on the page.
All the captured objects temporarily get saved in IDE. The left navigation pane in the IDE lists all the objects captured and are grouped by the page name or its URL.
Click on the save button to save the objects.

Validate web objects using Simplify Object Manager
Simplify Object Manager provides you with the benefit of validating the objects in a web page with those captured for an active session. Simplify Object Manager IDE validates only the primary object attributes - xpath, id, css, name, and class.
In browser: Open the web page for which objects need to be validated.
In Simplify Object Manager IDE: select the corresponding web page in the left navigation pane
Click on the validate button on the right top corner
Examine the validation result based on the color of the objects in the hierarchy in Simplify Object Manager IDE
Green - No primary object properties changed for the captured object
Orange - One or more of the object’s primary attribute has changed but not all and the object is still identifiable at runtime based on either of its primary attributes
Red - All the primary object attributes have changed
Clicking on the object lists all its captured attributes. Examine each of the attributes based on the attribute color
Green - a valid object attribute
Red - attribute value modified
Simplify Object Manager also lets you capture FLOW XPATHs for any given object with respect to its parent or sibling objects. On saving the object, all the xpaths are dynamically saved to the object repository. This is helpful for identifying dynamic objects at runtime.

Tag team members to projects with Simplify Object Manager
Users can also create new projects and tag people to form new teams. Team members lacking credentials to Simplify Object Manager will immediately get an invitation to register. Post the registration, they will be added to the team.

Renaming the objects attributes

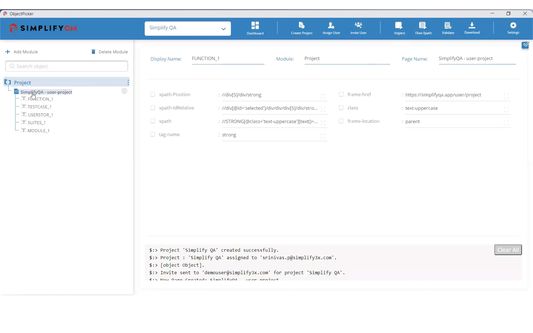

In order to give a meaningful name for better understanding, users tend to rename the captured objects. To rename an object, all you need to do is click on the object in the left navigation pane. All the properties captured for the object get listed on the right pane. Rename the desired attributes and save the changes.

Deleting the objects captured
Delete an object by clicking on the delete icon beside the object in the left navigation pane.

Download the captured objects
You can also export all the objects of a particular project by clicking on the Download button on the top right. Supported download formats:
Excel
JSON
SDK

Library Integrations of Simplify Object Manager
Simplify Object Manager also has Library Integrations so as the other tool users can make use of the object repository. The integrations consist of SDK for the programming languages which after successful implementation can be used in the code for those tools. The objects can thus be used via internal API calls with the SimplifyQA servers.

Supported Browsers
Chrome
Firefox
Edge

Overview of Simplify3X Software Pvt. Ltd.
Simplify3X started as a functional UI test automation tool addressing script less automation and in-sprint automation in agile methodology. Later we added API testing capability along with DB testing capability. As the market accepted our tool, we added requirement management, project management, release management, test management and defect management capabilities within our platform. Then the demand came for supporting multiple platforms like mobile (both Android and iOS) and mainframe. We also managed to enter the Malaysia Market and then the US market.
Simplify3X has designed and developed an in-house automation product SimplifyQA - a platform that serves as a one stop solution for all your software testing needs. It is a complete ALM tool encompassing Requirement Management, QA & Testing, Issue & Defect Management including Impact Analysis. SimplifyQA offers simplified, UI driven and script less Test Automation, Management & Reporting capabilities as built-in standard features.
Simplify3X featured in TOP 10 Software Testing Solution Provider, 2019 by APAC CIO Outlook.
SimplifyQA requires no knowledge of coding and hence consumes negligible time in training resources and it allows functional testers to write test cases only once that serve the dual purposes of manual and automation. It is thus intended to help development and testing teams become lean and improve quality. It also enables functioning in environments - Agile & Non-Agile.

Want to know what we do?
Brings better ROI to customers over the existing automation tools
Accelerate business growth by bringing down up to 40% of EFFORT, COST & TIME across SDLC
Make In-sprint test automation a reality with Seamless DevOps Integration
Achieve cross browser, serial & parallel test execution on the cloud
Provide a unified platform that supports automation testing for Mobile, Front-end, Application APIs & Databases.
Automate multi-platform business workflows stretching across Mobile and Web
Built-In Hybrid Test Automation Framework
Provide Unlimited Distribution of Test Execution on Cloud
The predefined functions and classes streamline the testing process so that programmers don't need to reinvent the wheel each time they develop a new application.
Powerful set of built-in capabilities to record actions, capture elements, manage and run automated tests in parallel to speed up the testing cycle on real mobile devices, web & desktop that require minimal or zero maintenance.
Optional delivery method of Cloud or On-premise
Reduces the effort of test design and automation by THREE times over the conventional automation tools
Provides Simplicity as there is no need for extensive coding or scripting
Brings agility in value delivery
Helps in achieving enhanced quality
Brings significant reduction in support cost
Record actions at one go capturing the web elements on any active browsers directly using SQA Object Manager
Check out SimplifyQA Tutorials

Feel free to write to us for any further information, clarifications, or feedback. We would love to hear from you. You can reach us at support@simplify3x.com
